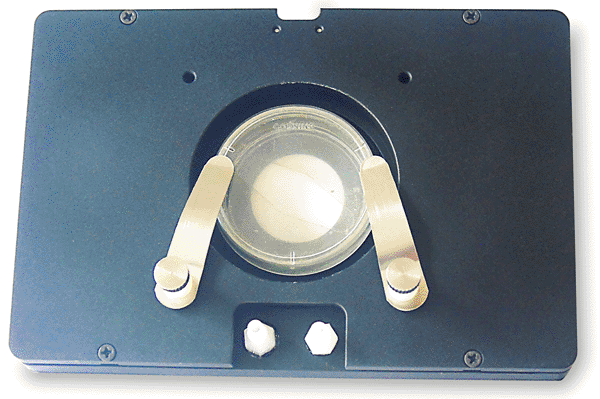

Low Profile Cooling & Heating stage for Petri dishes, 22mm aperture, BTC-S-128x86
This low profile heating/cooling stage was designed to fit inside 128x86mm holders for standard multi-well plates.
Can be used with 35mm Petri dishes (Petri dish adapters TC-PA might be required).

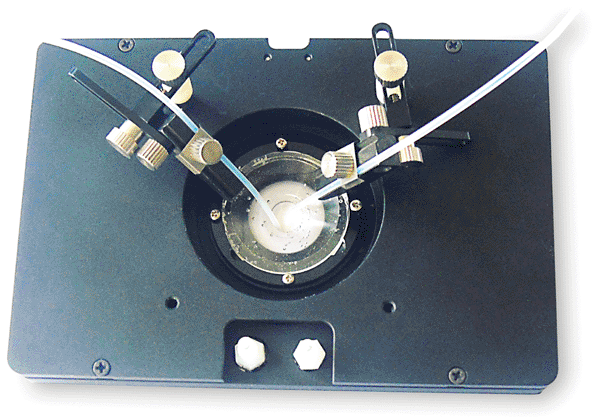

Positioned on both sides threaded #4-40 holes can be used to mount optional IMA-MH tubing and probes holders.
Can cool the sample down to 0°C (in combination with BTC-W heat exchange unit, lower
temperatures are possible using different commercial circulators) or heat up to 100°C.
Requires a temperature controller.
Low Profile Cooling & Heating stage for Slides and Chambered Coverglasses, 35mm aperture, BTC-Sx35-128x86
The same as above, but with an aperture of 35mm diameter, which allows to use CSC chambers for coverglasses.
Specifications: |
Dimensions: | 128x86mm |
Optical aperture: | 22mm, 35mm diameter |
Objective working distance, minimum: | 0mm (for inverted
and upright microscopes) |
Stability: | 0.1°C, built-in sensor |
Heat Sink: | optional water cooling for
low temperatures |
Click on catalog numbers below to purchase online.
Required accessories: 1-channel or 2-channel temperature
controller, sink cooling.
Download PDF manual.
Download PDF catalog.
|
|
Bioscience Tools
ph: 877-853-9755
fax: 866-533-7490
email: info@biosciencetools.com
|
PRICES AND OPTIONS |
BTC-S-128x86 |
$995 |
Low Profile Heating & Cooling stage for Petri dishes, 22mm aperture
|
BTC-Sx35-128x86 |
$995 |
Low Profile Heating & Cooling stage for coverglass holders, 35mm aperture
|
|
|
