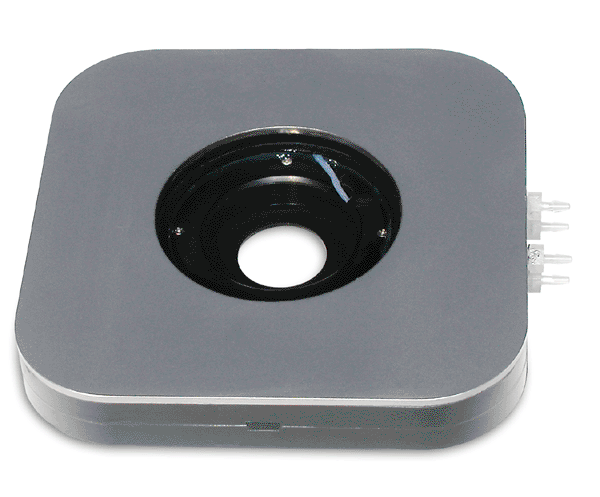

Temperature controlled Cooling & Heated microscope stage, BTC-S/ -35



Can be used with: standard 35mm disposable Petri dishes (Petri dish adapters TC-PA might be required), glass bottom dishes (TC-PA-W adapter is required); and replaceable coverslip chambers. Built-in solution cooler/pre-heater: PTFE tubing goes through the cooling element before enters the bath chamber. Can be used with incubator cover, to control gases inside, CO2 for O2. Consider a different cooling stage for rectangular slides. Requires a microscope adapter (specify microscope model when ordering), sink cooling, and a temperature controller.

Specifications:

Dimensions:

120x120x23mm

Optical Aperture:

22mm/ 35mm for BTC-S-35 stage

Objective working distance, minimum:

0mm (for inverted microscopes)

Stability:

0.1°C, built-in sensor

Heat Sink:

optional water cooling for low temperatures



Click on catalog numbers below to purchase online.
See sample publication:
5 Degradation Kinetics of Disulfide Cross-Linked Microgels: Real-Time Monitoring by Confocal Microscopy. Gels. 2023 Oct; 9(10): 782;
4 LONG-TERM MEMORY RULES WITHIN THE FEEDING NEURAL CIRCUIT OF THE MARINE SNAIL APLYSIA CALIFORNICA. 2022;
3 A novel in vitro analog expressing learning-induced cellular correlates in distinct neural circuits. Cold Spring Harbor Laboratory Press, February 15, 2022;
1 Eugenol and carvacrol excite first- and second-order trigeminal neurons and enhance their heat-evoked responses. Neuroscience. 2014 June 20; 271: 45–55;
2 Apparatus and Method for Producing Specimens for Electron Microscopy. patent US 20140360286 A1;

Required accessories: 1-channel or 2-channel temperature controller, sink cooling, microscope adapter.

Optional accessories: coverslip chambers.

Download PDF manual.

Download PDF catalog.

Bioscience Tools
ph: 877-853-9755, fax: 866-533-7490
email: info@biosciencetools.com


PRICES AND OPTIONS

BTC-S

$995

Heating & Cooling microscope stage, with 22mm optical clearance, for 35mm petri dishes

BTC-S-35

$995

Heating & Cooling microscope stage, with 35mm clearance, for CSC coverslip holders

TC-PA-C

$95

Reducing adapter-ring, for Corning and Mattek dishes.

TC-PA-N

$95

Reducing adapter-ring, for Nunc type dishes.

TC-PA-W

$95

Reducing adapter-ring, for Willco dishes.

TC-PA-F

$95

Reducing adapter-ring, for FluoroDishes.

TC-PA-G

$95

Reducing adapter  -reducing rings-, for Greiner Bio-One dishes, glass bottom

IMA-74

$195

Microscope adapter
