Miniature Incubators > Incubator for Motorized Stages


Miniature Incubator for 90mm dishes, TC-MI-100

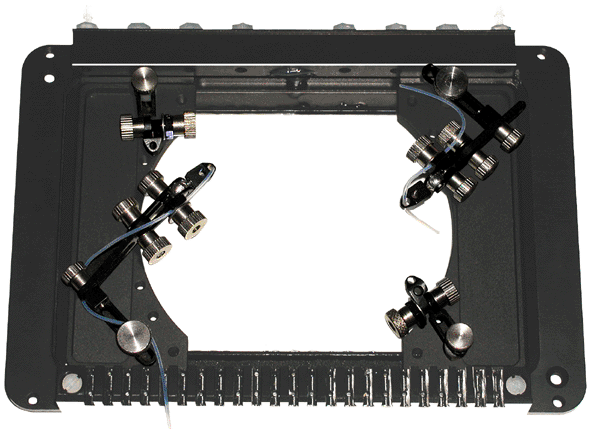

Designed for long-term live cell imaging and time-lapsed microscopy in any dish or chamber up to 86mm diameter. The base consists of two parts: TC-MWPHB and TC-I-100 insert. Standard multi-well 86x128mm plates will also fit inside (after removing TC-I-100 insert). Incorporates heated bottom and insert for water to control humidity (the insert can be also used to position adjustable holders for electrodes and accessories  to position perfusion tubing for continuous media exchange). Requires a heated lid (purchased separately), to prevent condensation and to control CO2 or hypoxia. Built-in multiple ports for tubing and accessories (probes and sensors). Fits all brands of motorized stage (see table below). The bottom is closed (for open bottom incubator, to access with immersion objective - consider another model).

Brand

extension (if required)

Ludl, Prior, ASI, Marhauser, Zeiss

no extension required

Nikon 236x155mm:

TC-MI-NIK

Thorlabs 170x130mm:

TC-MI-THOR

Ludl Bioprecision II, 172x116mm:

TC-MI-LUDL



Specifications:

Outside dimensions:

Fits 160x110mm cutout of motorized stages; he base height is 11mm; the bottom is recessed (8mm below the mounting surface, comes with 3mm spacers to reduce this recessed profile to 5mm; can be leveled by set screws positioned in the corners of the incubator base

Inside dimensions:

86x128mm; 118x72mm window on the bottom; 33mm from bottom to top lid surface (23.5mm for ultra-low lid option); 24mm inside clearance (17.5mm for ultra-low lid); optional spacers allow to elevate the top surface 9.5mm - to provide more space inside the incubator

Heated bottom:

1mm glass

Stability:

0.01°C

Use with:

custom devices and chambers 86mm diameter (dishes), standard multi-well plates, Petri dishes, and  coverglasses/slides

Condensation free lid:

Uses a built-in temperature sensor to connect independently to the second channel of temperature controllers, or connect in parallel with the heated base, 81x121mm optical window

CO2 port:

Luer-lock connector to a source of gas mixture.

Media exchange and perfusion:

Multiple sealed inflow ports, a set of adjustable tubing holders to position inflow and outflow tubing inside sample chambers.



Click on catalog numbers below to purchase online.

Required accessories: temperature controller.

Optional accessories: CO2/O2 controller, humidifier.

Download PDF manual.

Download PDF catalog.


Bioscience Tools
ph: 877-853-9755, fax: 866-533-7490
email: info@biosciencetools.com


PRICES AND OPTIONS

TC-MI-100

$1,390

Miniature Incubator for custom devices and chambers, with closed heated bottom.

TC-MWPL

$1,295

Lid for miniature Incubator TC-MWP, -MWPHB, -MIW

TC-MWPLL

$1,295

Ultra-low lid for miniature Incubator TC-MWP, -MWPHB, -MIW

TC-I-E

$195

Spacer to elevate the lid 9.5mm

TC-MI-THOR

$195

Adapter for ThorLabs stages, 170x130mm

TC-MI-NIK

$195

Adapter for Nikon motorized stages, 236x155mm

TC-MI-LUDL

$195

Adapter for Ludl Bioprecision II stages, 172x115mm

MH-MIS

$195

Set of miniature adjustable tubing and sensor holders, x3, includes 4-40 threaded posts
