Miniature Holders > Adjustable Miniature Micro-Positioner

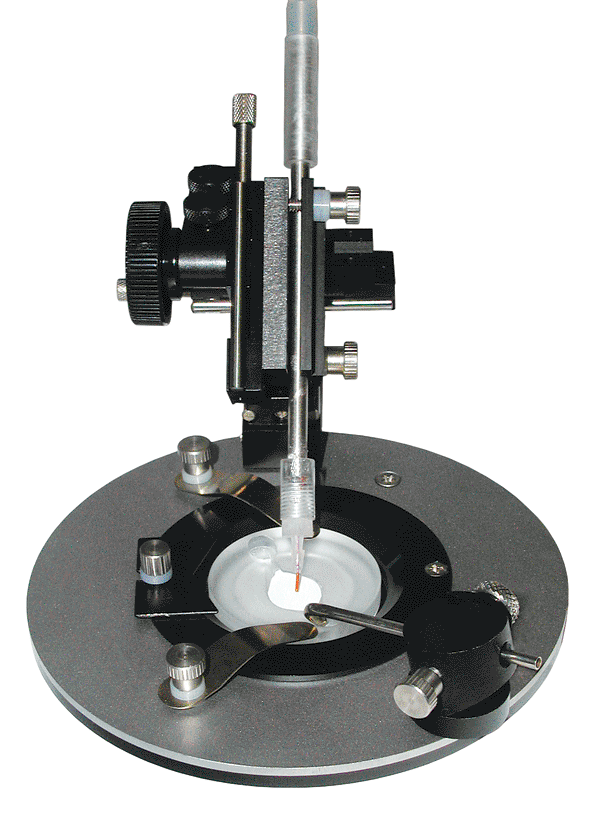

Miniature micromanipulator on magnetic holder, MMH-3

This 3-D fine micromanipulator can be used to mount miniature accessories: from micromanifolds to small clamps and holders. It provides 12mm working distance in all axes and micron resolution. The third Z-axis can be adjusted at a tilt angle to provide easy access to samples without obstructing optical pathways. The clamp to mount rods can be removed to provide a threaded surface to attach custom accessories: holders and clamps. The micro-manipulator can be assembled for both: right-hand and left-hand configurations (Allen wrench is required). The magnetic mounting allows you to position the manipulator on a microscope adapter. If you do not have a magnetic surface, the manipulator can be mounted using provided M6 and 1/4-20 screws adapters. Click on image to enlarge.

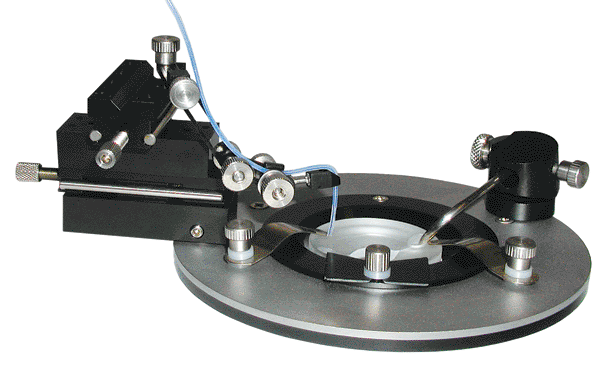

Miniature micromanipulator on magnetic holder, MMH-2

This 2-D fine micromanipulator can be used to mount miniature accessories: small clamps and holders. It provides 12mm working distance in two axes and micron resolution. The micro-manipulator can be assembled for both: right-hand and left-hand configurations (Allen wrench is required). The magnetic mounting allows you to position the manipulator on a microscope adapter. If you do not have a magnetic surface, the manipulator can be mounted using provided M6 and 1/4-20 screws adapters. Click on image to enlarge.

Miniature micromanipulator on magnetic holder, MMH-1

This fine micro-positioner can be used to mount miniature accessories: small clamps and holders. It provides 12mm working distance and micron resolution. The micro-manipulator can be assembled for both: right-hand and left-hand configurations (Allen wrench is required). The magnetic mounting allows you to position the manipulator on a microscope adapter. If you do not have a magnetic surface, the manipulator can be mounted using provided M6 and 1/4-20 screws adapters. Click on image to enlarge.

Specifications:

Tilt adjustment:

for 3-D MMH-3, z-axis

Working distance:

12 mm

Mounting:

Magnetic, M6 and 1/4-20 screws (included)

Dimensions:

approx: 50 x 50 x 50 mm



Click on catalog numbers below to purchase online.

Recommended accessories: clamps and holders.

Download PDF manual.

Download PDF catalog.

Bioscience Tools
ph: 877-853-9755, fax: 866-533-7490
email: info@biosciencetools.com


PRICES AND OPTIONS

MMH-3

$995

Miniature magnetic micromanipulator, 3-D

MMH-2

$695

Miniature magnetic micromanipulator, 2-D

MMH-1

$395

Miniature magnetic micromanipulator, single-axis.
